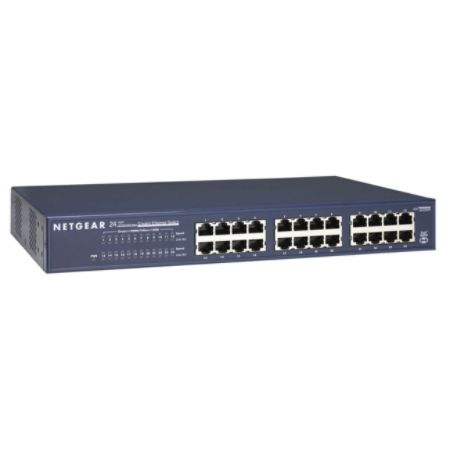

Netgear ProSafe JGS524 24-Port Gigabit Ethernet Switch Item # 565413

 |
Netgear ProSafe JGS524 24-Port Gigabit Ethernet Switch
$ 187 .99 / each $187.99
In Stock
Free delivery
Estimated delivery 1-3 business days

Free in store pickup  Free in store pickup
Sold in stores
Check your store availablity

    Description

    The ProSAFE Plus16 and 24-port Gigabit Switch provides simple network management delivering network monitoring, traffic prioritization and network segmentation beyond simple connectivity. They also come with features such as IGMP snooping, cable diagnostics, loop prevention and Auto DoS prevention, providing much needed improvement for network performance and resilience.

    Back To Top

    Product Details

    Item # 565413
    OfficeMax # 22791917
    Manufacturer # JGS524NA
    Ethernet Technology Gigabit Ethernet
    Product Series JGS500
    Total Number of Network Ports 24
    height 1.7 in
    Additional Information Latency (1000 to 1000 Mbps): 20 µ s max
    System Requirements UTP Category 5 cables or better; Network card for each PC or server
    Number of Network (RJ-45) Ports 24
    Certifications & Standards IEEE 802.3i: 10BASE-T Ethernet; IEEE 802.3u: 100BASE-TX Fast Ethernet; IEEE 802.3ab: 1000Base-T Gigabit Ethernet; IEEE 802.3x: Flow Control; Electromagnetic Compliance:CE mark, commercial; FCC Part 15 Class A; VCCI Class A; EN 55022 (CISPR 22), Class A, EN 50082-1; EN 55024; C-Tick; Safety Agency Approvals:UL listed (UL 1950)/cUL; IEC950/EN60950
    width 13 in
    Product Line ProSafe
    Manageable No
    package contents 24-port Gigabit Ethernet Switch JGS524; Power Adapter; Installation Guide; Rack-mount Kit; Warranty/Support information card
    depth 8.1 in
    Product Name ProSafe JGS524 24-Port Gigabit Ethernet Switch
    Twisted Pair Cable Standard Category 5
    manufacturer Netgear, Inc
    weight 5.30 lb
    brand name NETGEAR
    Port/Expansion Slot Details 24 x Gigabit Ethernet Network
    Input Voltage 110 V AC; 220 V AC
    Media Type Supported Twisted Pair
    Layer Supported 2
    form factor Rack-mountable
    MTBF 87600 Hour
    warranty length limited lifetime
    model name JGS524
    Network Technology 10/100/1000Base-T
    Show More ▾
    Back To Top

      Customer Reviews

      Rated 5 out of 5�by 1 reviewer.
      Rated 5 out of 5�by Excellent product! High quality, easy to install and flawless seup. Couldn't ask for better. Even though I didn't use it, the rack mount hardware kit is a nice addition. December 7, 2015
      • 2016-04-17 T06:17:39.178-05:00
      • bvseo_lps, prod_bvrr, vn_prr_5.6
      • cp-1, bvpage1
      • co_hasreviews, tv_1, tr_1
      • loc_en_US, sid_565413, prod, sort_default
      1-1 of 1
      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Overview

      • The NETGEAR ProSAFE® Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop and rackmount form factors and 24 port configurations. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

      Product Highlights

      • Take Gigabit to the Desktop
        • 24 ports deliver up to 2000 Mbps of dedicated, non-blocking bandwidth per port
        • Instant Plug-N-Play connectivity with Auto-negotiation and Auto MDI/MDI-X
        • Easily combine new or existing 10-, 100- and 1000-Mbps devices within your network
        • 802.1p QoS support for prioritizing voice and video in the network
        • Jumbo Frame Support up to 16 KB

      Additional Features

      • Features
        • Each port delivers up to 2000 Mbps of network speed (full duplex)
        • Fast, auto-switching and auto-sensing 10/100/1000 Mbps Ethernet connection
        • 24 switched ports provide bandwidth for PCs, servers or switches
        • Auto Uplink™ automatically adjusts for straight-through or crossover cables
        • Plug and play—begins working as soon as it is powered on
        • Integrates 10-,100- and 1000-Mbps devices into your network
        • Compact size for desktop or for mounting in a standard 19-inch rack
        • Secure, durable metal housing includes a Kensington locking slot for theft prevention
        • NETGEAR LIFETIME Warranty†
        • LIFETIME Next Business Day Replacement
        • LIFETIME 24/7 Advanced Tech Support via chat
        • Supports jumbo frames up to 16 KB
        • Honors TOS/802.1p prioritization

      Product images

      {"images":[{"assetWrapper":"image-gallery","runtimeSrc":{"height":3486,"width":4576,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-a0b13c21-dc3a-496a-b21a-43fce8b6eb6a.jpg"},"isAdaCompliant":false,"src":{"height":3486,"width":4576,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-0adb0102-a51a-49c6-b836-7fa980a0d00c.png"},"sources":[{"height":731,"width":960,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-840910b8-1c9b-4732-be97-d7e76dd9b9fc.jpg","profile":"W960"},{"height":365,"width":480,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-029ee07e-9b20-4f62-83e0-3c33511676ba.jpg","profile":"W480"},{"height":182,"width":240,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-69f3a4e8-c457-4de6-876d-672b4ed1f3a8.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":2854,"width":4024,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-d78097ea-0e4a-4515-ae06-4ac8a2afab74.jpg"},"isAdaCompliant":false,"src":{"height":2854,"width":4024,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-ef86249a-93e5-4a1b-ae48-af9b59a44459.png"},"sources":[{"height":680,"width":960,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-411c6456-14a6-4e1a-9394-8b0476f8dcf8.jpg","profile":"W960"},{"height":340,"width":480,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-23e7b122-299c-4819-b807-48df694e878f.jpg","profile":"W480"},{"height":170,"width":240,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-2ea5a969-ab00-449d-978a-3e2903a29eac.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","runtimeSrc":{"height":2518,"width":4136,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-8a8f1360-7608-475f-abb8-b789623f3cd6.jpg"},"isAdaCompliant":false,"src":{"height":2518,"width":4136,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-88f5c351-cf28-4353-b3f0-74e46c0f51bd.png"},"sources":[{"height":584,"width":960,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-0b2f5507-b8e1-47bc-99f3-d4e318699e94.jpg","profile":"W960"},{"height":292,"width":480,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-9b5ee8da-f2db-4b64-a600-3fd96552941a.jpg","profile":"W480"},{"height":146,"width":240,"src":"/_cp/products/jgs524/tab-fb6e14b3-6361-4758-9ec8-8b813f5a1ae9/resource-3cbf12f1-4609-4101-b6b1-c7c5d7b7608a.jpg","profile":"W240"}]}]}

      Technical Specifications

      • Physical Specifications

        • Dimensions (w x d x h): 43 x 320 x 170 mm (1.7 x 12.6 x 6.7 in)
        • Weight: 1.745 kg (3.84 lb)

        Package Contents

        • 24-port Gigabit Ethernet Switch (JGS524V2)
        • Power cord
        • Installation guide
        • Rack-mount kit
        • Warranty/support information card
